• Roof type: Pitched roof
• Mounthing Type: EasyMount Hanger Bolt
• Colour: Silver
• Wind load: Normal
• Optional Black frame: 0.08

Description

"Quick and easy mounting solution for flat roofs

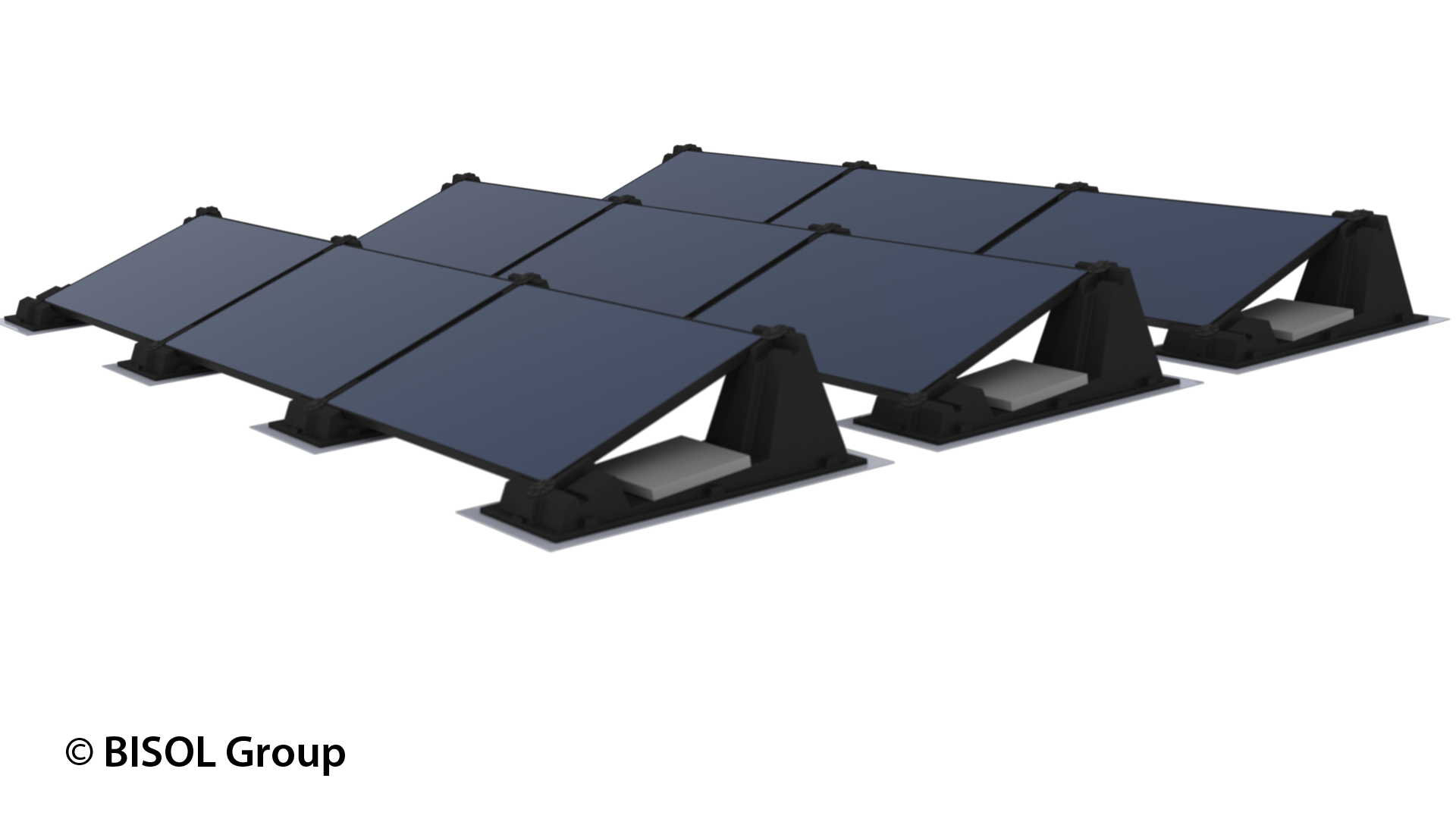

BISOL EasyMount HDPE Base 200 is a premium mounting solution for PV installations on flat roofs or surfaces. It requires no roof penetration and allows for the PV modules to be positioned at a 20° angle. The cutting edge mounting solution has been developed in-house and combines superior design with durability for extreme ease of installation and long-term performance. It is made of highest quality recyclable materials and will leave a positive mark on the environment."

• Warranty: 15-year UV and mechanical resistance guarantee
• MATERIALS AND INSTALLING:

"Application: Flat roofs

Roof incline: Up to 5°

Method of installation: No roof penetration

Module angle: 20°

Module orientation: Landscape

Module frame tolerances: Length: any / Width: 991 mm ± 5 mm (39.02” ± 0.2”) / Thickness: 40 mm ± 2 mm (1,575” ± 0.08”) / Reverse side width: 27 - 32 mm (1.06” - 1.26”)

Base color: Carbon black

Base material: High-density polyethylene - HDPE, carbon black, UV-resistant

(base) / Glass fibre reinforced polypropylene (screws)

Base weight: 5.5 kg (12.1 lbs)

Additional stabilization: Ballast, Wind shields

Temperature range: -20 to 70°C

Snow load per system: 0 - 2.40 kN/m2

Wind load (velocity)(1): 0 - 115 km/h (71 mph)

 (1) With the use of ballast and wind shields according to the specifications."
