• Roof type: flat roof
• Mounthing Type: Eco Flat roof
• Colour: silver
• Wind load: Normal
• Optional Black frame: 0.08

Description

"FlatFix eco

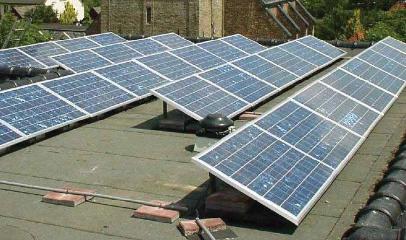

FlatFix eco is a modular and simple assembly system to place solar panels on a flat roof. It is especially a useful product when it comes to smaller roofs, or roofs with many obstacles, because every individual solar panel can be placed on the roof optimally. Think, for example, about garage roofs, carports, etc.
The FlatFix eco system has a standard setup angle of 20 degrees. Solar panels that are set up at an angle of 20 degrees perform very well and maintain their self-cleaning properties.

MATERIALS AND INSTALLING

"Assembly

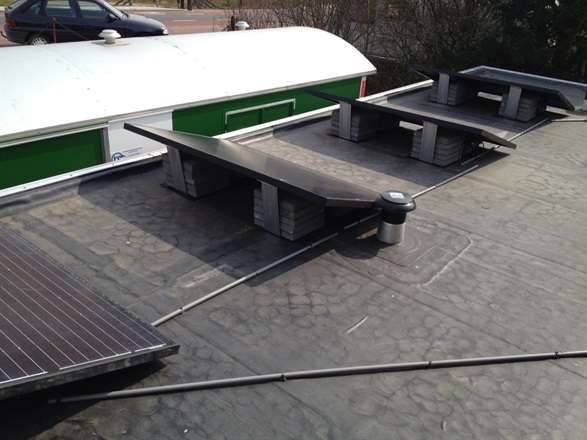

The solar panels are mounted on two aluminium brackets. The FlatFix eco system gets ballasted to place the solar panels storm-proof on the roof. More ballast is needed than at the standard FlatFix system because of the open structure. The average roof load at the FlatFix eco system is between 25 kg and 50 kg per square meter.
Materials and tools
The whole system is manufactured from high quality aluminium components. The assembly system comes with rubber mats to protect the roof covering. Each type or brand of solar panel can be mounted on the FlatFix eco system. There is only a 10 mm socket wrench needed for the assembly of the solar panels."

• Warranty: 20 years’ warranty
